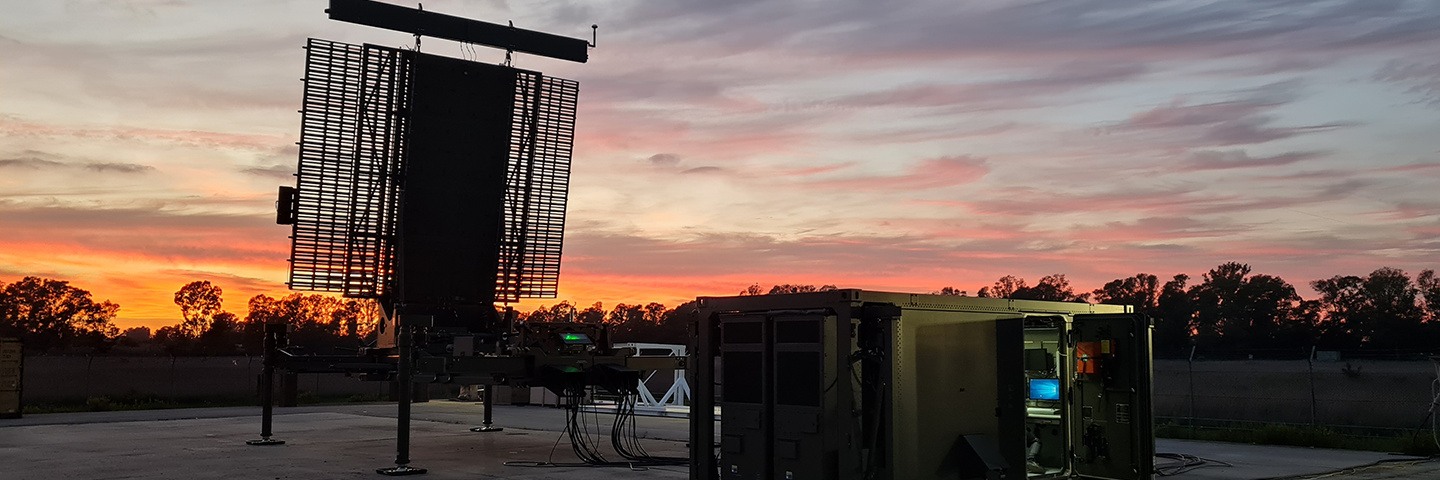

Leonardo’s RAT 31DL/M radar delivers dependable air surveillance in today’s dynamic threat environment. This deployable, solid-state L-band system leverages advanced AESA technology with simultaneous pencil beams to precisely detect a multitude of threats, including tactical ballistic missiles, electronic-warfare systems and saturation attacks. Engineered for rapid deployment and autonomous operation, it integrates seamlessly into contemporary defence networks. Trusted by NATO allies and international armed forces, RAT 31DL/M provides proven performance, adaptability, and robust airspace protection in the most demanding operational scenarios.
Advanced Air Surveillance & Threat Detection

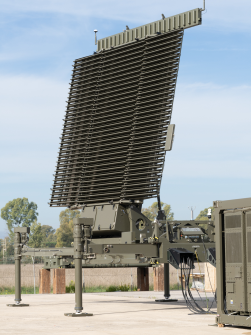

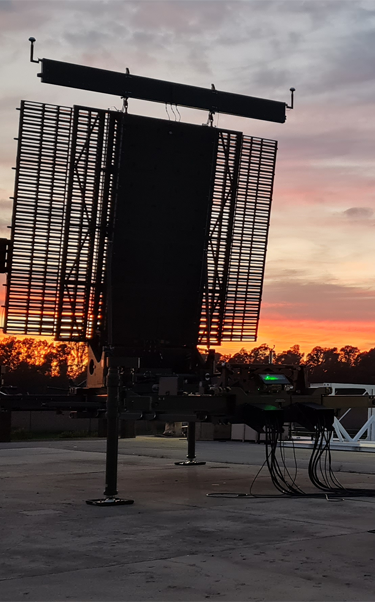

RAT 31DL/M combines solid-state reliability with a rotating AESA antenna, utilising Multiple Simultaneous Pencil Beams (MSPB) for independent electronic steering in elevation and superior clutter suppression. Optimised for multi-threat engagements, it excels at identifying Tactical Ballistic Missiles (TBMs), EW systems, and saturation attacks. Mono-pulse processing ensures precise 3D tracking, while ultra-low sidelobes and advanced ECCM resist electronic countermeasures (ECM) and Anti-Radiation Missiles (ARMs). An integrated Secondary Surveillance Radar (SSR) supports secure IFF Modes 4/5/S, enhancing secure identification and comprehensive situational awareness.
Strategic Mobility & Autonomous Operation

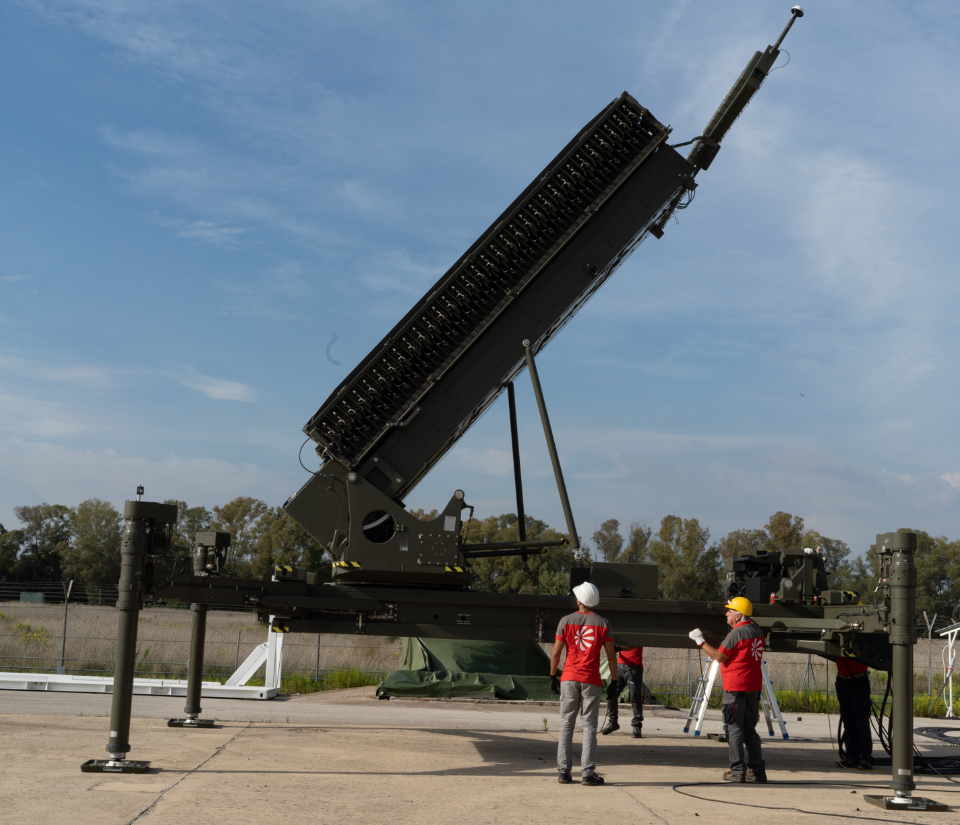

Optimised for tactical agility, RAT 31DL/M features a modular architecture housed within two ISO 20-foot containers, enabling rapid airlift or ground transport. Its trailer-mounted auxiliary power generator supports over 24 hours of autonomous operation, while a 5-person crew can achieve full operational readiness in just 120 minutes, making it ideal for time-sensitive, forward-deployed missions. Operating in the L-band, RAT 31DL/M ensures precise detection across Mode 5, ADS-B, and IFF Levels 1 and 2, providing continuous, reliable airspace surveillance for expeditionary defence operations.
Future-Proof Reliability
RAT 31DL/M is battle-tested by defence forces worldwide. Its solid-state design guarantees exceptional resilience, featuring graceful degradation to maintain operation under high-stress conditions. The modular framework accommodates advanced upgrades, such as reconfigurable elevation scanning, ensuring adaptability to evolving mission requirements. Built for long-term success, the RAT 31DL/M offers scalable performance and operational excellence, securing both current and future defence requirements
Technical data
SYSTEM ARCHITECTURE
Multiple simultaneous independent pencil beams
Reconfigurable elevation scan profile
Multi-waveform coded transmitted signals
Independent and identical receiver channels
Modular architecture with graceful degradation capability
ANTENNA & COUNTERMEASURES
Sidelobes: Ultra-low antenna sidelobes
SLB Antenna: Independent sidelobe blanking antenna
ECCM Capability
OPERATIONAL PERFORMANCE
Frequency Band: L-Band
Instrumental Range: 400 km
Elevation Coverage: –2° to +20° (ABT); up to 60° (ATBM)
Air Target Ceiling: 30.5 km
IFF/SSR Modes: Mode 1, 2, 3, 4, C, 5, ADS-B (Level 1 and 2)
Data Output Protocols: ASTERIX, AWCIES, proprietary formats
LOGISTICAL REQUIREMENTS
Containerisation: 2 loads, 20’ ISO standard
Total System Weight: 30,000 kg (each module < 8,000 kg)

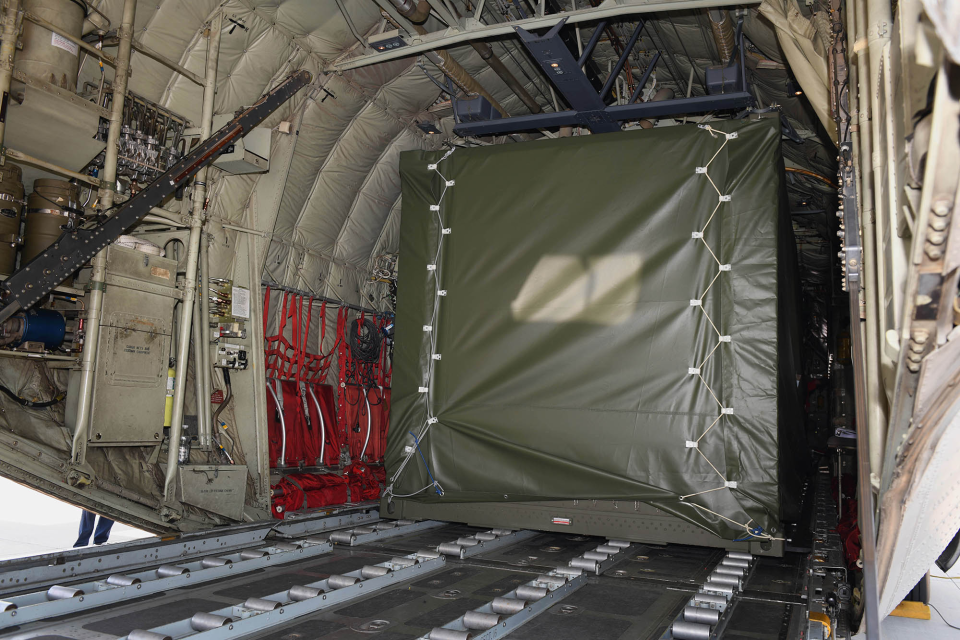

Transportability: Aircraft (C-130), helicopter (CH-47), road (standard 10-ton truck)
ENVIRONMENTAL & DEPLOYMENT CONDITIONS
Operational Temperature: –40°C to +50°C
Set-Up Time: 120 minutes by 5 personnel
Power Autonomy: 24-hour continuous operation without refuelling (fully operational system)
